Specific to HyDraw CAD 2021, applying Settings in HyDraw Options displaying Exception error

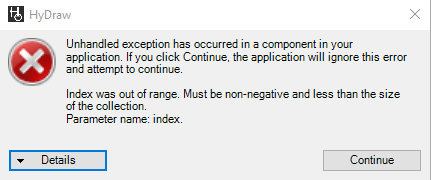

When user modifies the settings in HyDraw Options and click Ok, it displays Unhandled exception error as shown below:

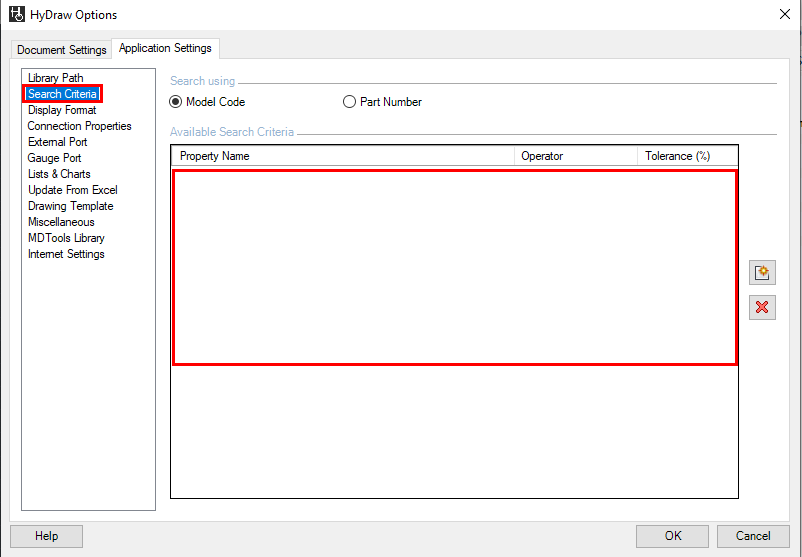

The error is coming because of blank Search Criteria settings present in HyDraw Options. The issue is hapening with both SQL and Access database.
Solution:
To resolve the issue, add some properties in Search Criteria and click Ok. It will work fine.
