How do I add circles to leaders automatically
Navigate to the Annotate tab within the ribbon menu.
Click on the Leaders options within the ribbon menu
Having the standard leader style selected, select Modify...

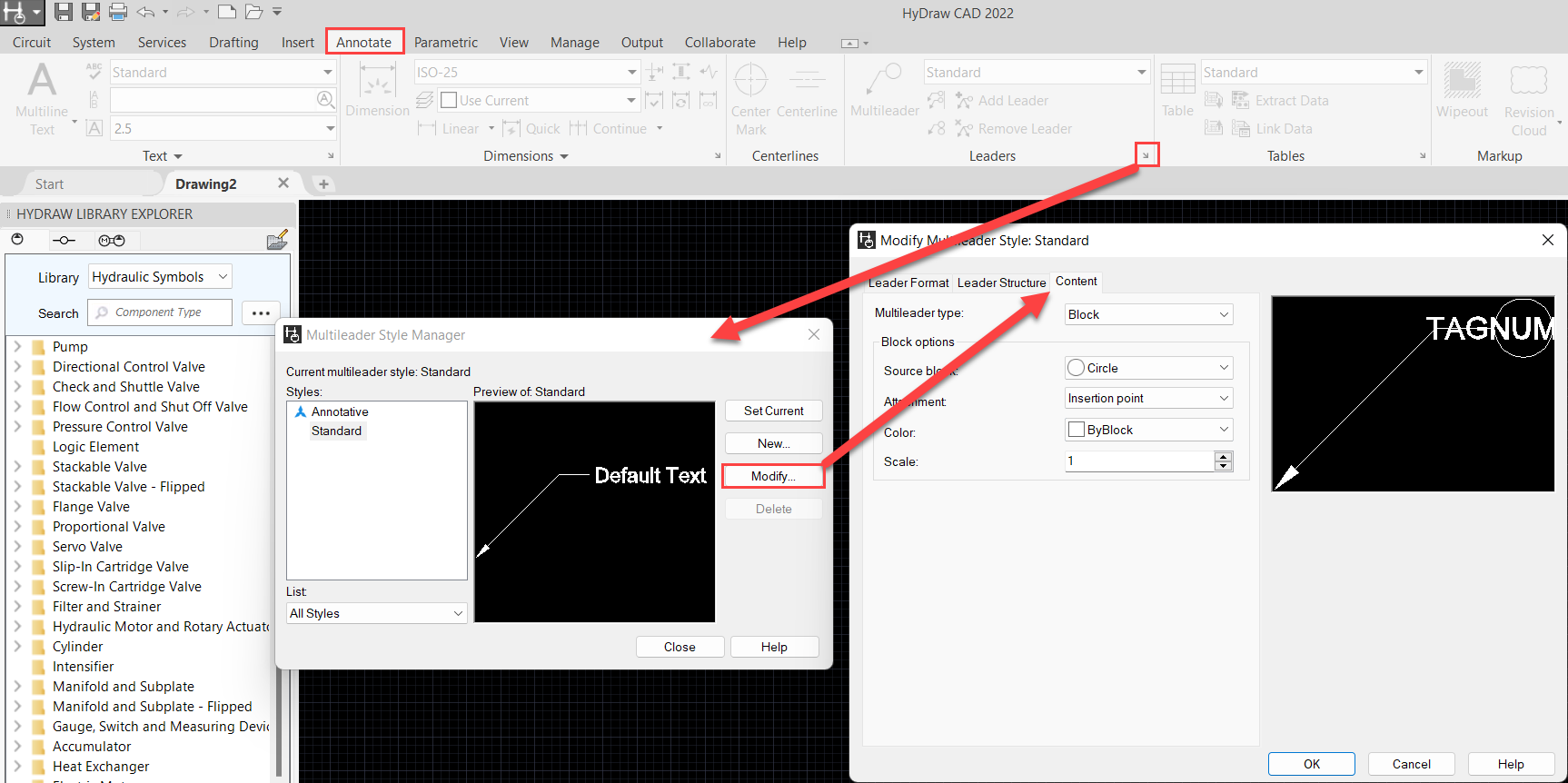

Go to the Content tab and select the options as displayed below.
This will automatically add a circle to the leader.
