How to Access FluidPowerTools.com Symbols and Metadata Updates from HyDraw® CAD

Download the new HyDraw CAD symbols and metadata within HyDraw Library Manager.

1. Open the HyDraw Library Manager.

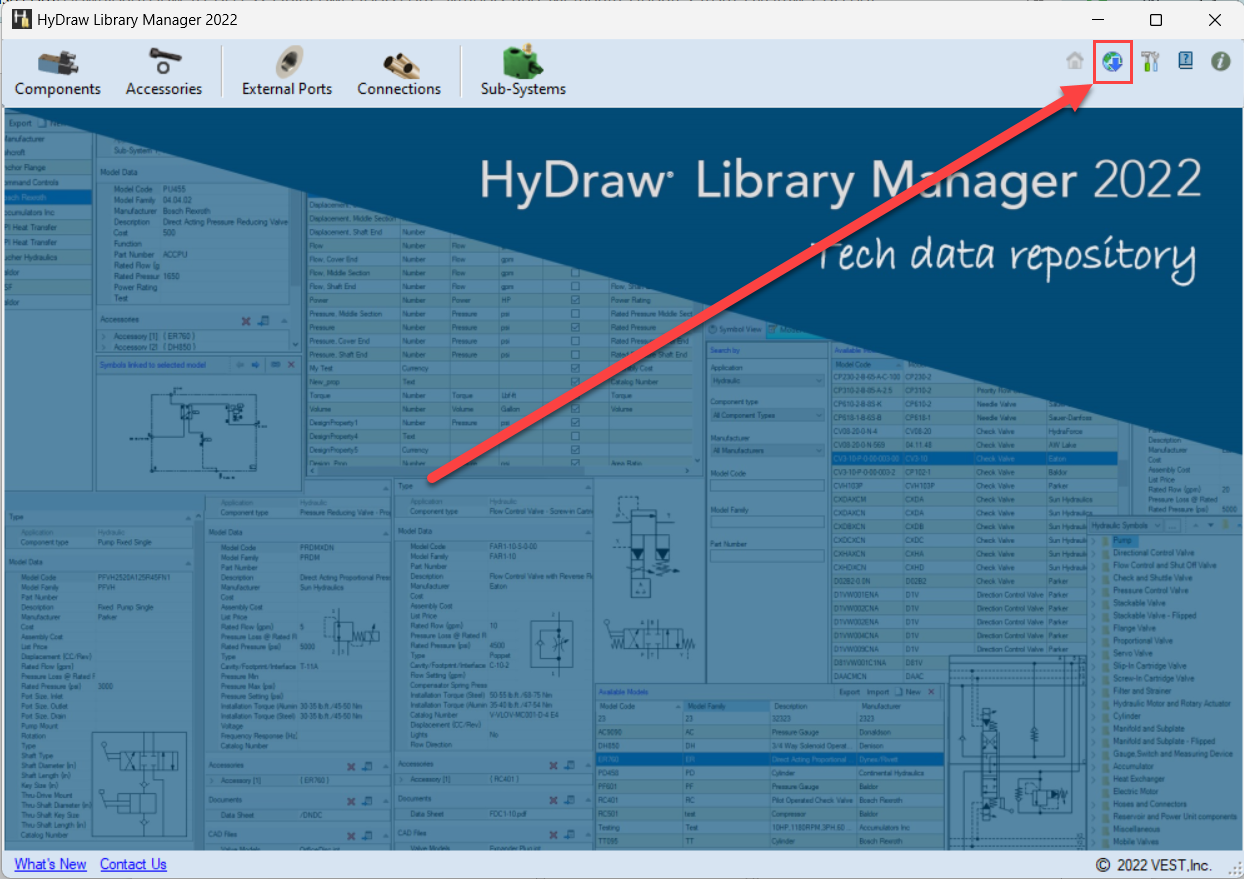

2. Click the Download  icon.

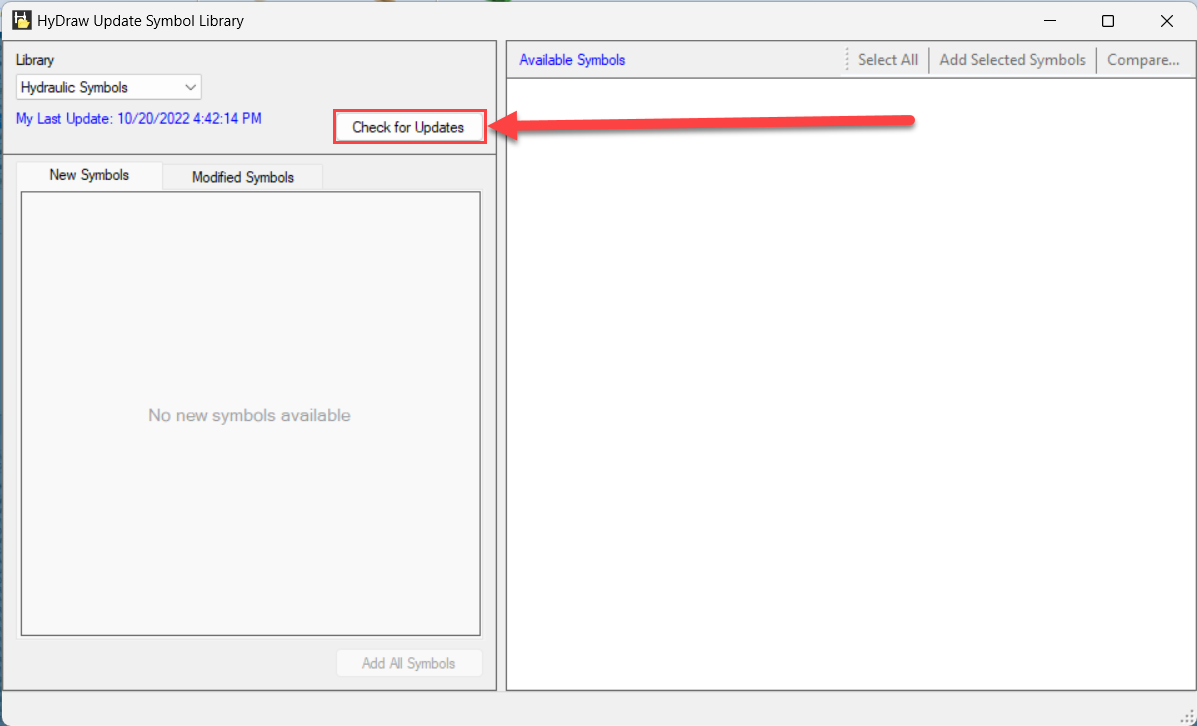

3. Click Check for Updates.

The new/modified symbols will download and be available to preview before importing into your library.

Click Add All Symbols to quickly implement all the changes within your library.

Click Add Selected Symbols to add selected symbols to your library.

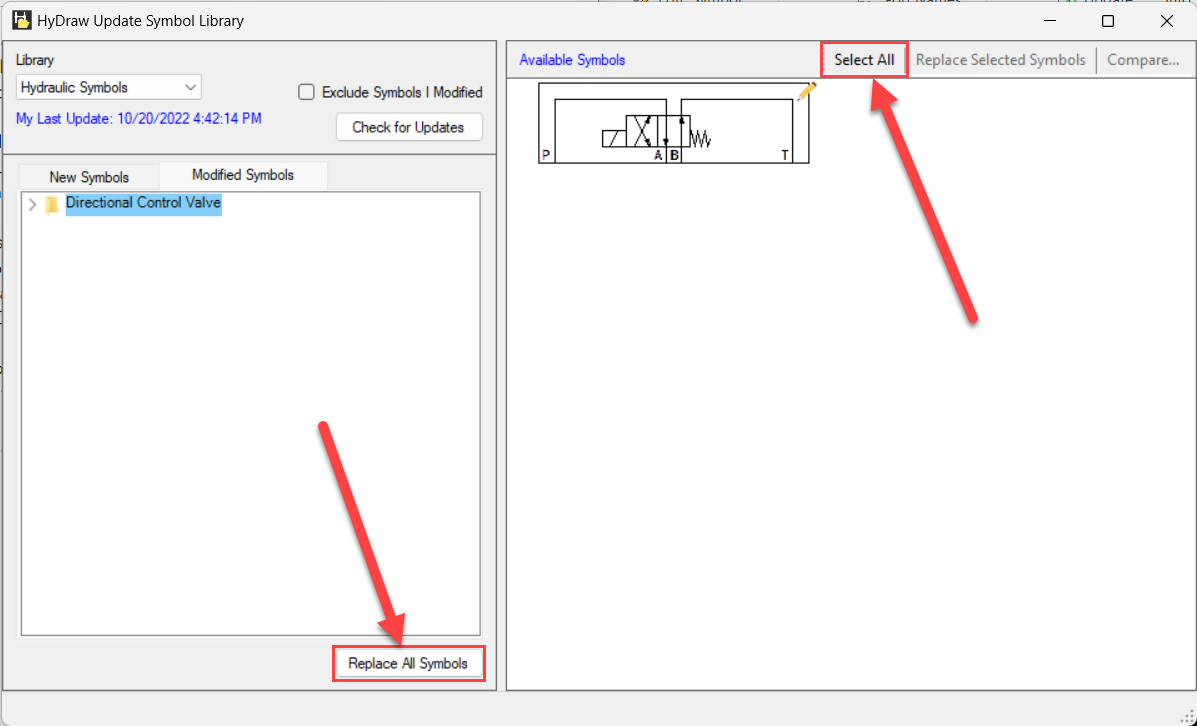

Click the Modified Symbols tab > Select All button for symbols present only in the selected folder.

Click Replace All Symbols button to replace all symbols in your library with the newly released ones.

The metadata that corresponds to these symbols can now be accessed through the HyDraw Library Explorer within HyDraw CAD.

To search through the Local Library or FluidPowerTools.com for symbols along with the corresponding metadata, select the breadcrumbs  next to the component search.
