How to Change Color of Solenoid Energized state Symbol in Actuation Chart
- Insert a Directional Control Valve Symbol in a
Drawing.
- Add Solenoid Information using Solenoid Info
command.

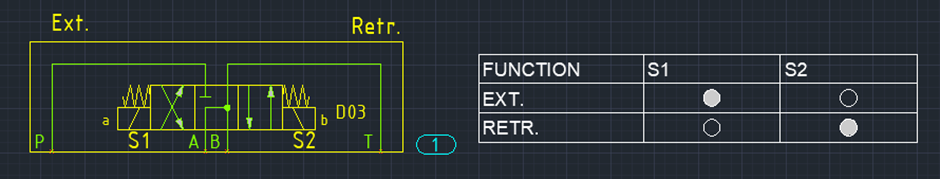

3. Go to System Tab, select Actuation from Ribbon, and create the Actuation Table.

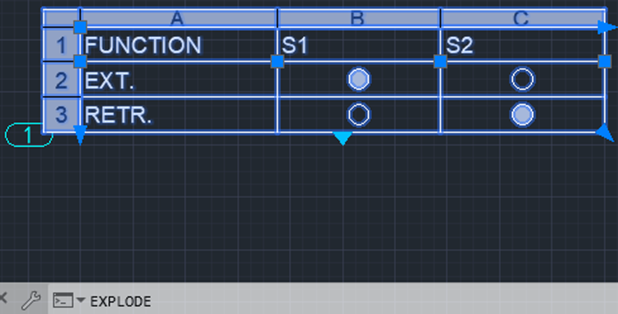

4. Select the Actuation Table in drawing and type Explode
in Command Line.
5. Select the Filled Dot Symbol and right click
select Block Editor.
6. Editor mode opens.

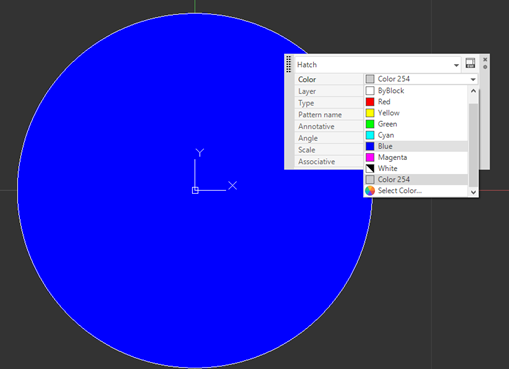

7. Double click the hatch and change the Colour.
8. Close Block Editor and Save the Changes.

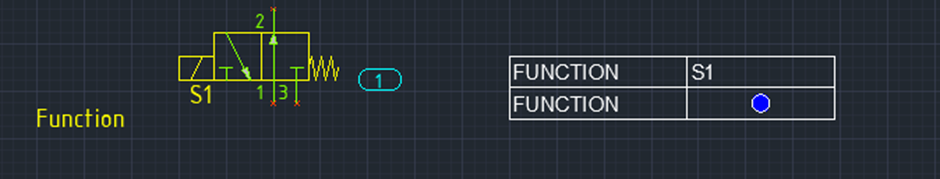

9. Now, the energized state colour is changed in
the chart.
10. Save the Settings in your Template by saving the
drawing as New Template.

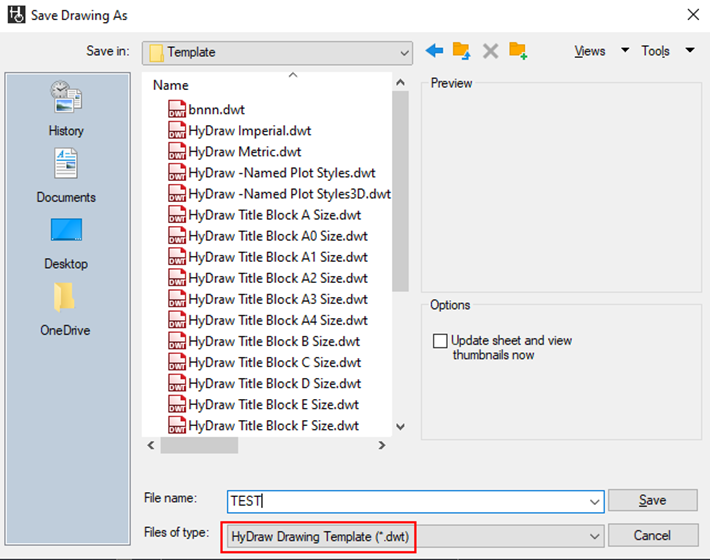

11. Select Save as > File type as .dwt
> File name and select Save.

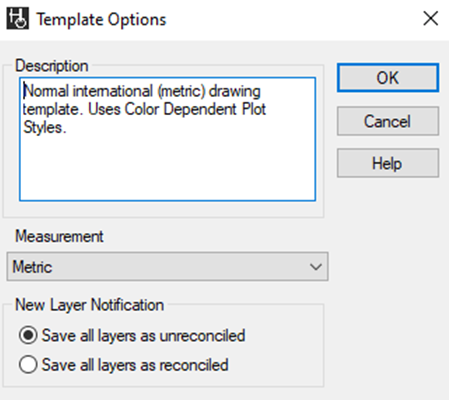

12. It gives the following prompt, click Ok.
13. Delete the Symbol and Actuation Chart from
Drawing inserted earlier and select Save.
14. Now you can use the same Template for New
drawings. When you insert the Actuation Chart, it will have same Colour for
Energized state as changed earlier.
