How to configure the HyDraw Parts List Style
1. Select the Parts List.

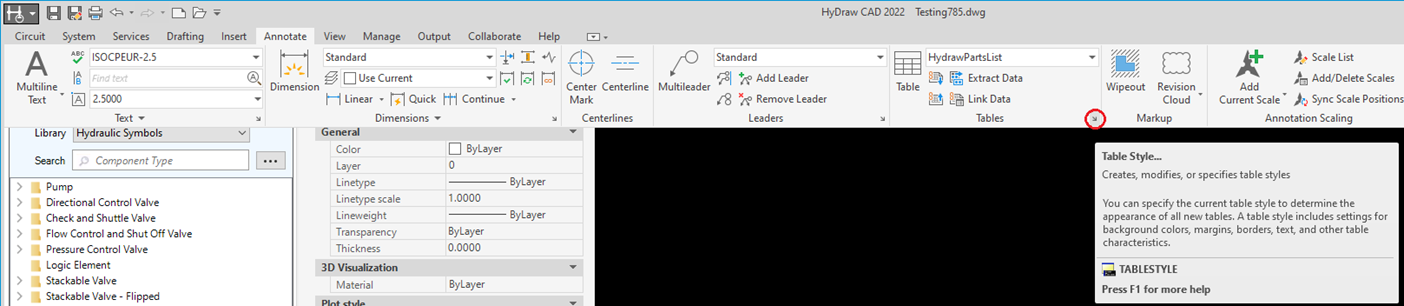

2. Go to Annotate Ribbon Menu, in the Tables section, select the Table Style… Option.

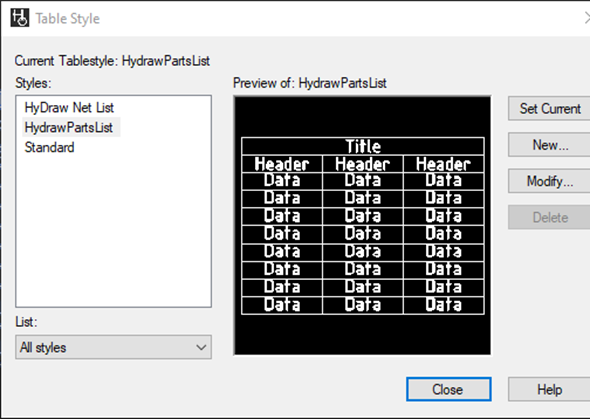

3. Click the Modify… button.

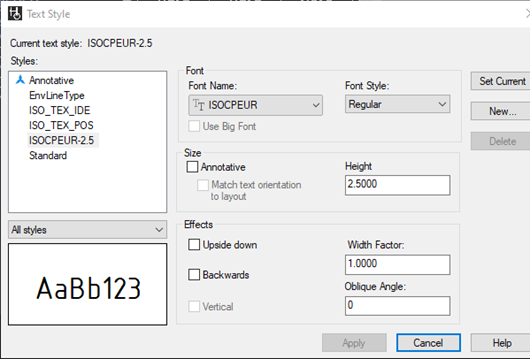

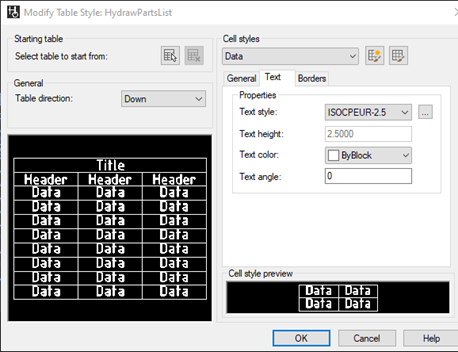

4. Switch to Text tab and click the Text Style Ellipses button
5. Select the required Font Name and Height.
6. Click New…, the New Style with the specified name appears in the Styles List.
7. Click Apply and close the dialog.
8. Click OK and Close all the Opended dialogs, your customization of HyDraw Part List Style is done
