How to Fix Flipped, Mirrored, or Reversed Display of Port Names, Port Types, and Other Attributes

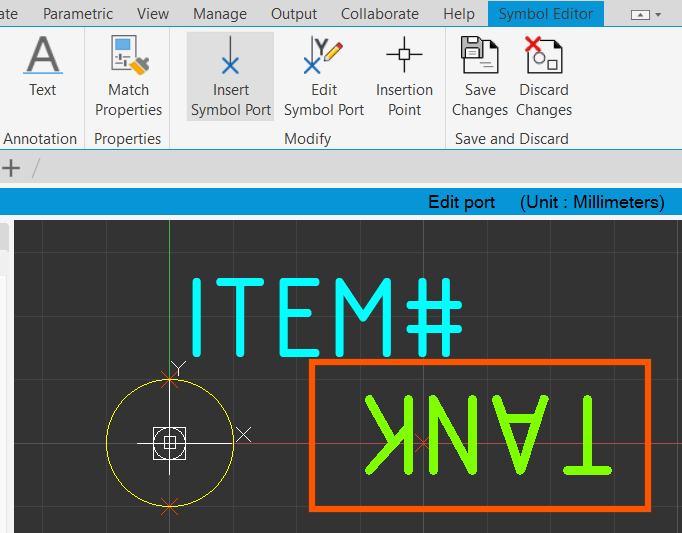

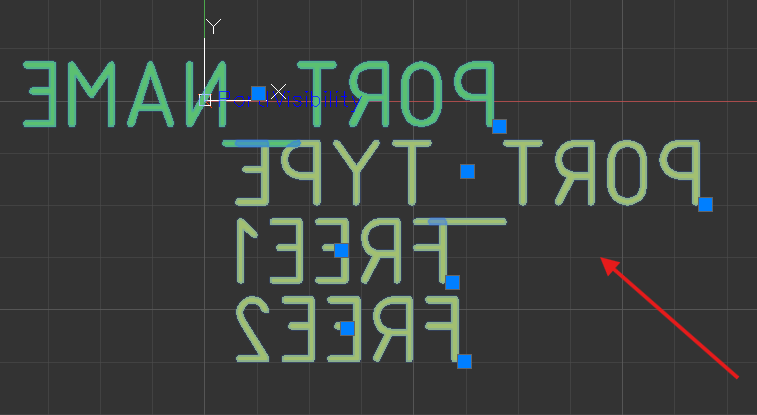

While in edit mode if the Port Names, Port Types and Other Attributes appear Flipped, Mirrored or Reversed as shown below:

Follow the below steps to fix it:

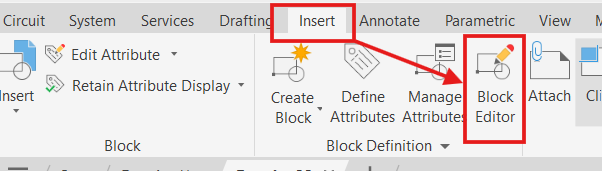

1. In the Menu --> Select Insert tab --> Click on the Block Editor command in Block Definition group.

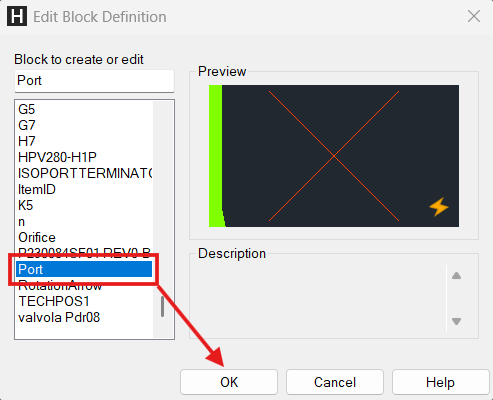

2. In the Edit Definition Block dialog box --> Select Port from the list in Block to create or edit --> Click OK.



3. Select all the text attributes like Port Name, Port Type, etc.

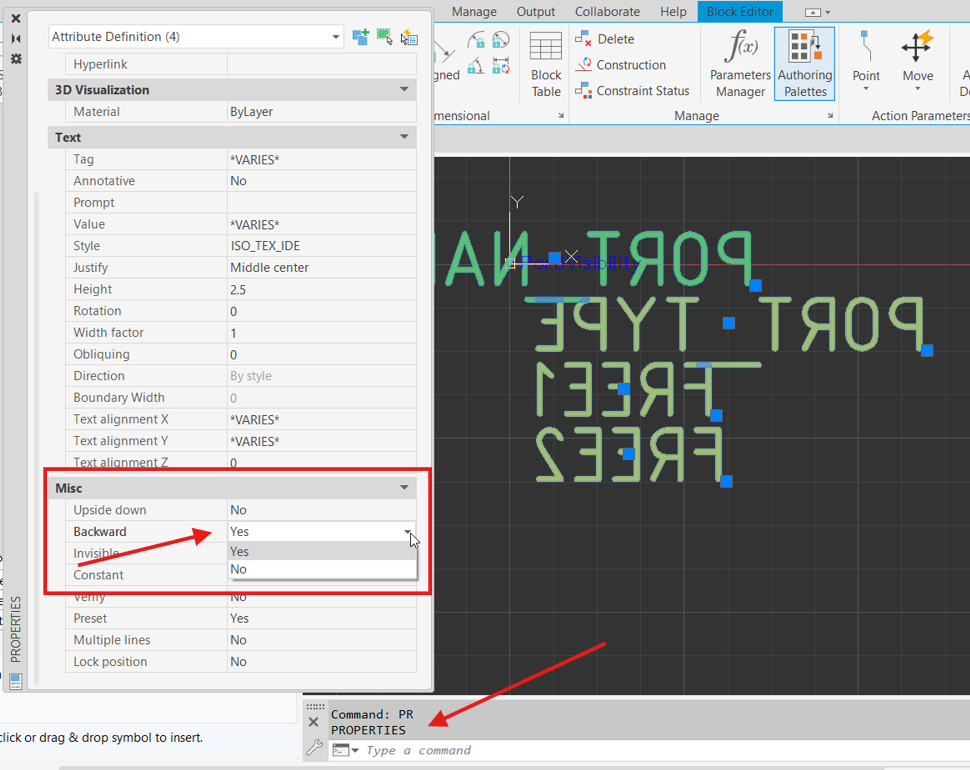

4. Enter PR in the command line to run the Properties for the selected attributes. In the Properties dialog box --> scroll to Misc group --> Set the Upside down and Backward rows to No.

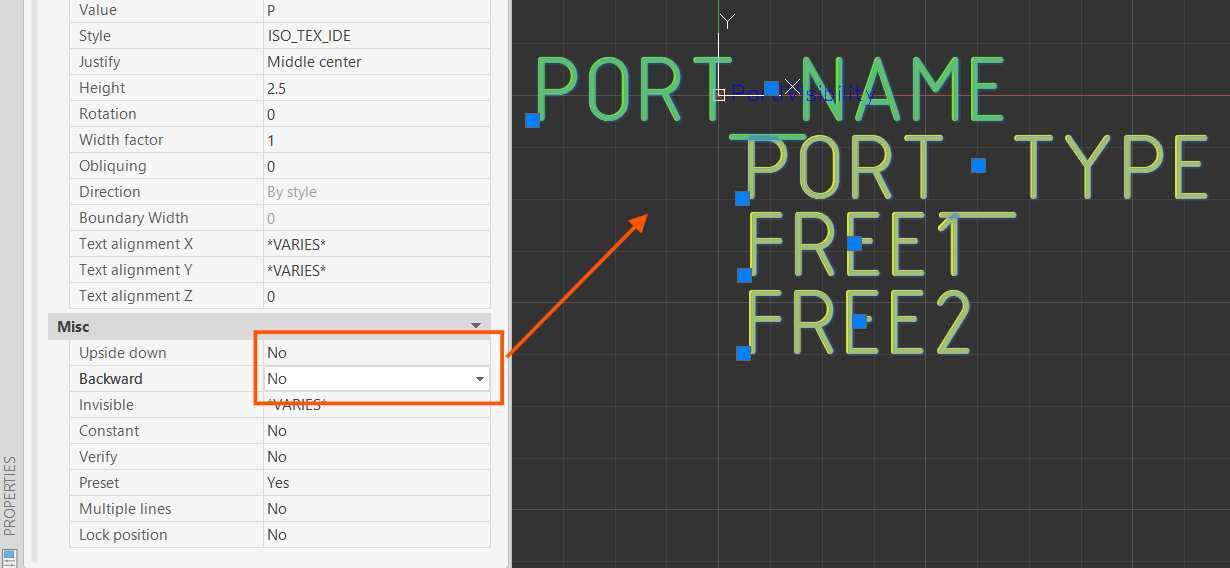

5. This will fix the attributes to appear properly.

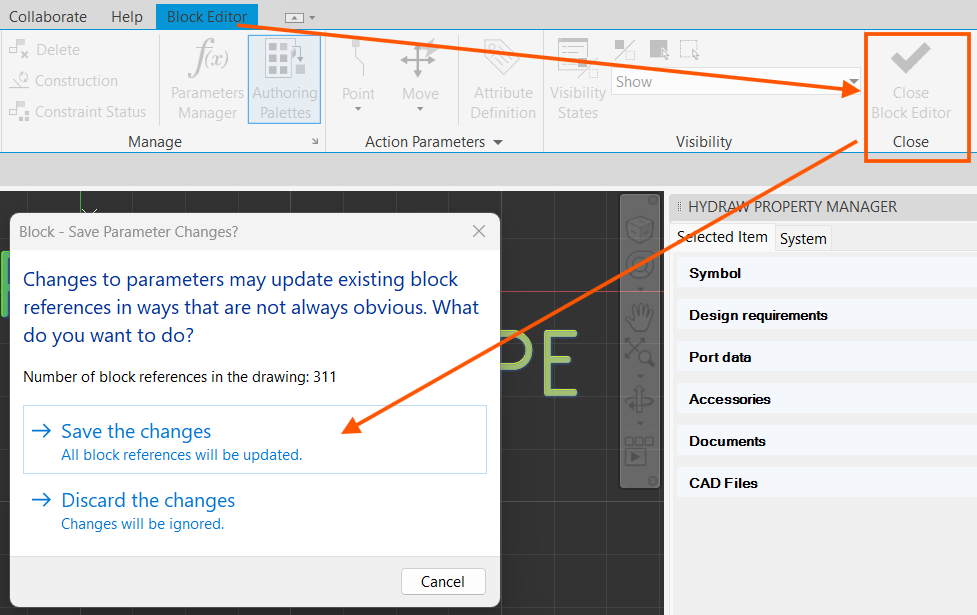

6. Click on Close Editor to close the Block Editor and Save the changes in the next window.

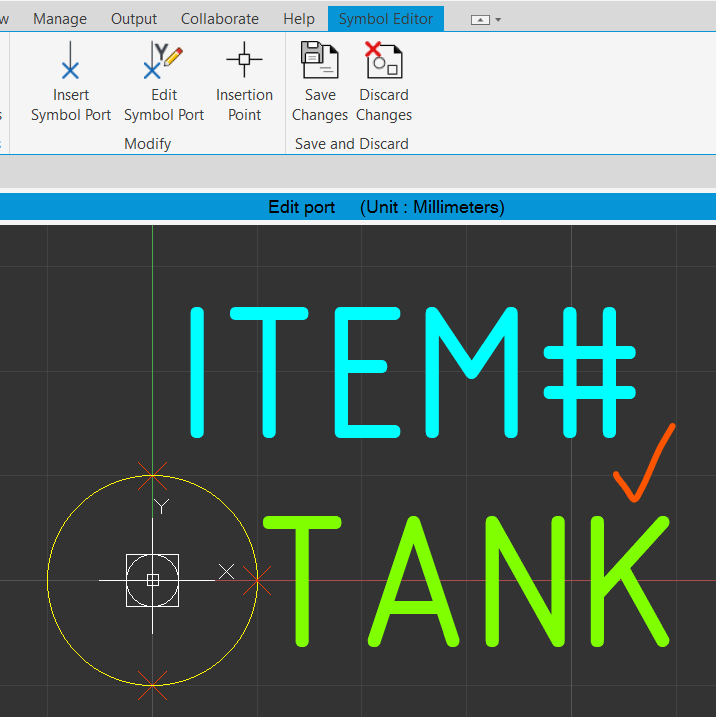

7. This will resolve the issue while editing Port symbols for Port Names, Port Types etc.
