How to reset port name fonts style to default standard font style!

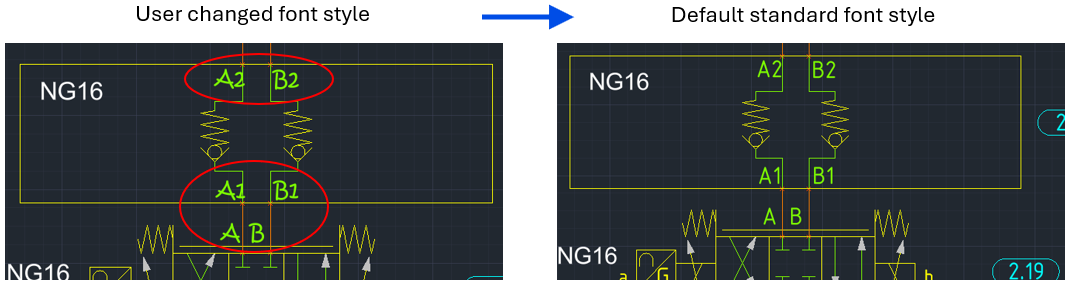

Follow the steps below to switch back the font style of port names to default standard style:
- Select the "Text Style" from the "Drafting" tab and "Annotation" group drop down as shown below.
- In the dialog, select "ISO_TEX_IDE". Then from the 'Font Name' drop down -- select the "ISOCPEUR", as shown below.
- Apply the changes to take effect. This will reset the font of port names to default standard.
