List of Files and Their Locations Used During Settings Migration from HyDraw CAD 2024 to HyDraw CAD2026
Description

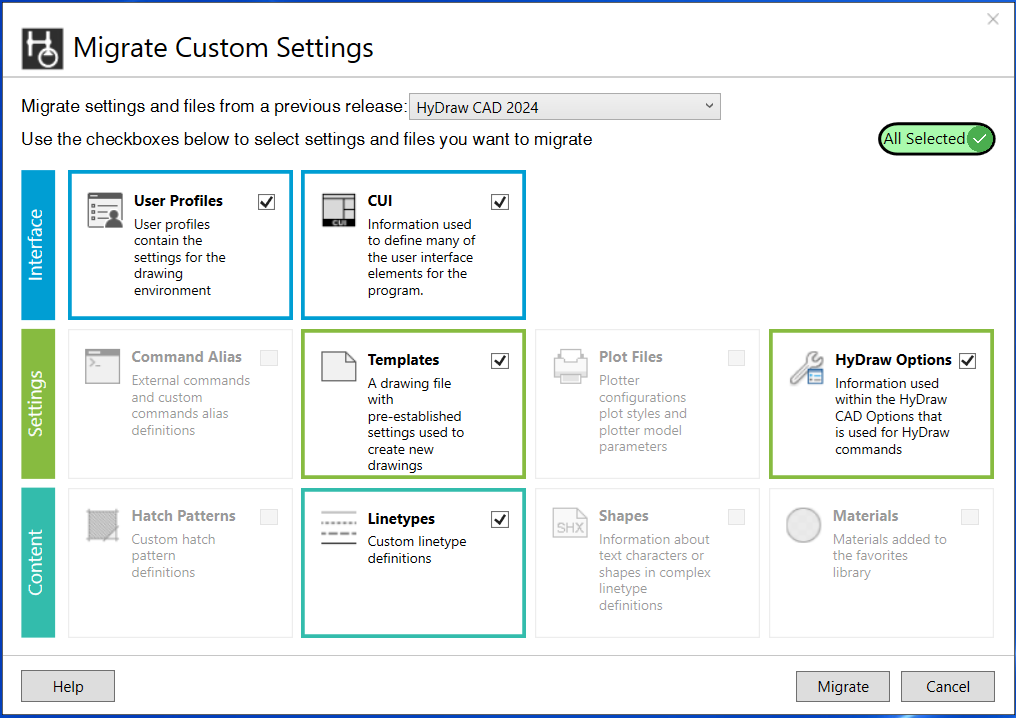

This article lists the files and folder locations used by the Migrate Settings feature while migrating settings from HyDraw CAD 2024 to HyDraw CAD 2026. Ensure that the files are present in the specified folders and that you have permission to access and modify them.
User Profile Settings:
Source: %APPDATA%\VEST\HyDraw CAD 2024\R2024\enu\Support\Profiles\profile.aws
Destination: %APPDATA%\VEST\HyDraw CAD 2026\R2026\enu\Support\Profiles\profile.aws
Main CUI Settings:
Destination: %APPDATA%\VEST\HyDraw CAD 2026\R2026\enu\Support\HyDraw.cuix
HyDraw CAD Application Settings:
Possible Source Locations:
For Standard users: %APPDATA%\VEST\HyDraw CAD 2024\
or
For Admin users: %PROGRAMDATA%\VEST\HyDraw CAD 2024\
Destination: %APPDATA%\VEST\HyDraw CAD 2026\
Drawing Templates:
Destination: %LOCALAPPDATA%\VEST\HyDraw CAD 2026\R2026\enu\Template\HyDraw CAD 2024 Templates\
Files:
HyDraw - Named Plot Styles.dwt
HyDraw - Named Plot Styles3D.dwt
HyDraw Imperial.dwt
HyDraw Metric.dwt
HyDraw Title Block A Size.dwt
HyDraw Title Block A0 Size.dwt
HyDraw Title Block A1 Size.dwt
HyDraw Title Block A2 Size.dwt
HyDraw Title Block A3 Size.dwt
HyDraw Title Block A4 Size.dwt
HyDraw Title Block B Size.dwt
HyDraw Title Block C Size.dwt
HyDraw Title Block D Size.dwt
HyDraw Title Block E Size.dwt
HyDraw Title Block F Size.dwt
HyDraw.dwt
HyDraw3D.dwt
HyDrawISO - Named Plot Styles.dwt
HyDrawISO - Named Plot Styles3D.dwt
Hydrawiso.dwt
Hydrawiso3D.dwt
Tutorial-iArch.dwt
Tutorial-iMfg.dwt
Tutorial-mArch.dwt
Tutorial-mMfg.dwt
Architectural Imperial.dwt
Architectural Metric.dwt
Linetype Files:
Source:
%APPDATA%\VEST\HyDraw CAD 2024\R2024\enu\Support\HyDraw.lin
%APPDATA%\VEST\HyDraw CAD 2024\R2024\enu\Support\Hydrawiso.lin
Destination:
%APPDATA%\VEST\HyDraw CAD 2026\R2026\enu\Support\HyDraw.lin
%APPDATA%\VEST\HyDraw CAD 2026\R2026\enu\Support\Hydrawiso.lin
Note: If the Migrate Settings feature fails due to any unexpected reason, users may manually copy the required files from the HyDraw CAD 2024 source location to the corresponding HyDraw CAD 2026 destination location. Some settings may still require manual configuration after copying.
