Setting up MS SQL Library in HyDraw CAD 2022 gives Login failed error

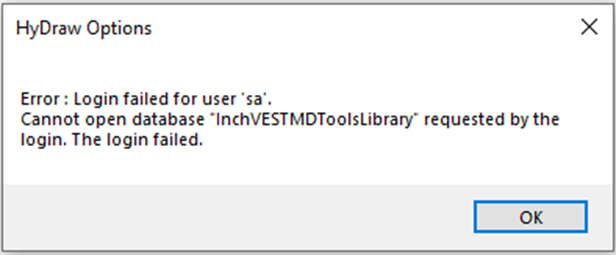

While trying to Login MS SQL Library in HyDraw CAD 2022 gives Login failed error.

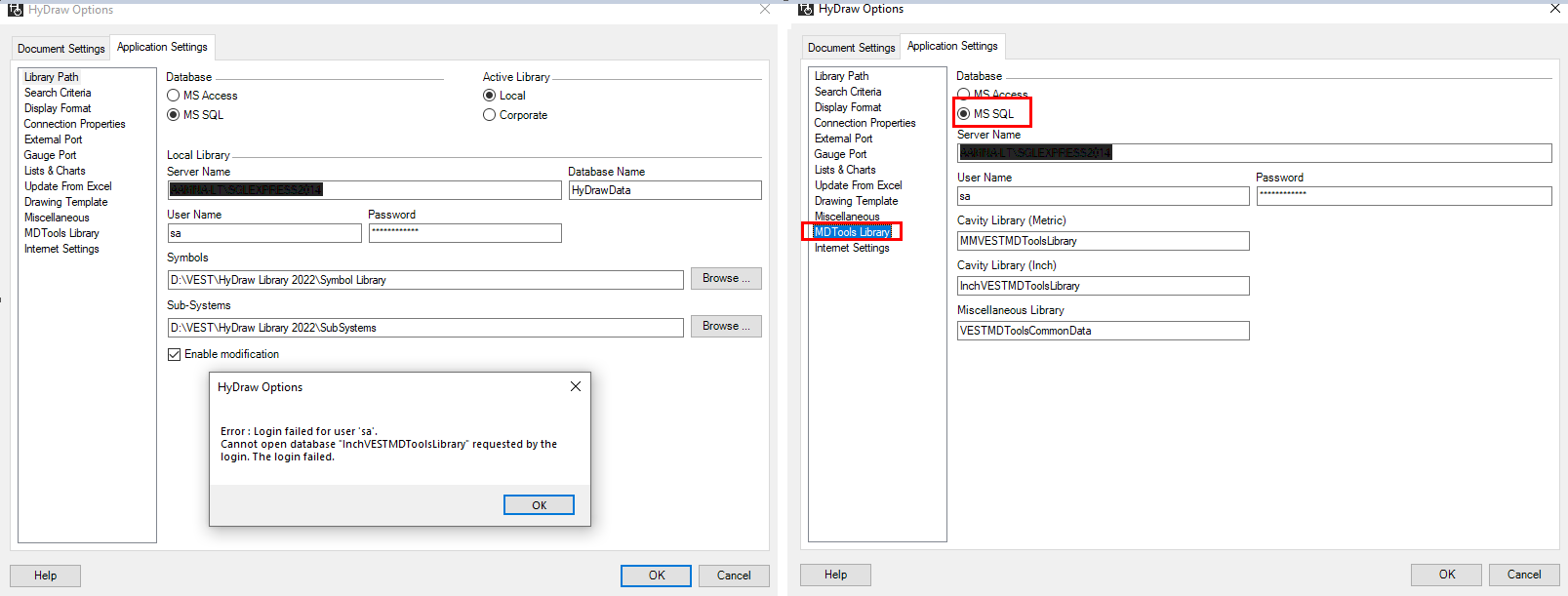

The error is coming possibly because of MDTools Library selected as MS SQL in HyDraw Options, and the database is missing in SQL server.
Solution:
- Go to HyDraw Options >
Application settings and select MDTools Library.
- Select MS Access.
- Click Ok,
- Now Login to MS SQL Library will
work fine.
