Symbol Insertion Point Remains Visible After Editing a Symbol

Issue:

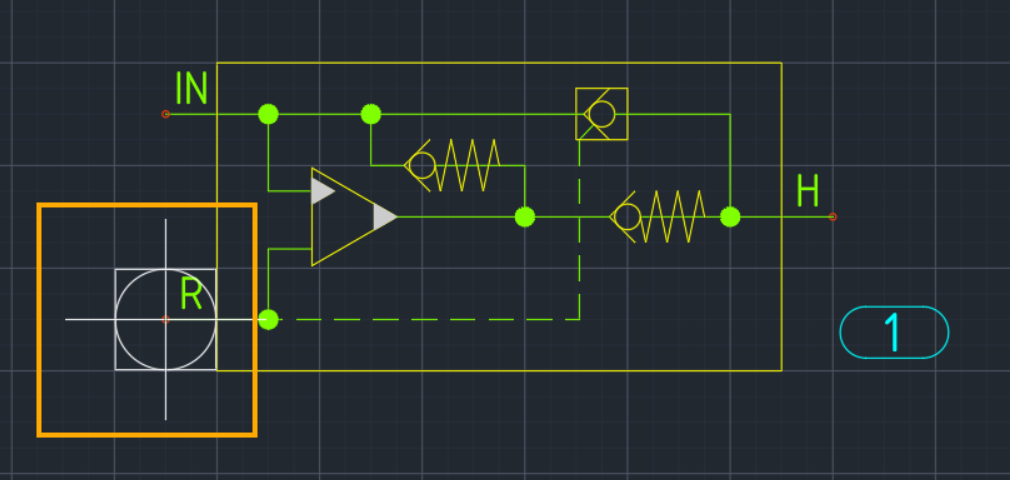

After exiting Edit Symbol mode, the symbol insertion point may remain visible in the drawing.

This issue occurs occasionally and does not affect the functionality of the symbol. It is a display issue only.

Resolution:

To hide the insertion point, reset the AutoCAD PDMODE system variable:

The insertion point will no longer be visible.

If the issue continues to occur, please contact HyDraw CAD Support (hydrawsupport@vestusa.com) and include:

The HyDraw CAD version you are using. You can find this by navigating to Help > License Information.
The steps you performed before the insertion point became visible, if known.

Additional Information:

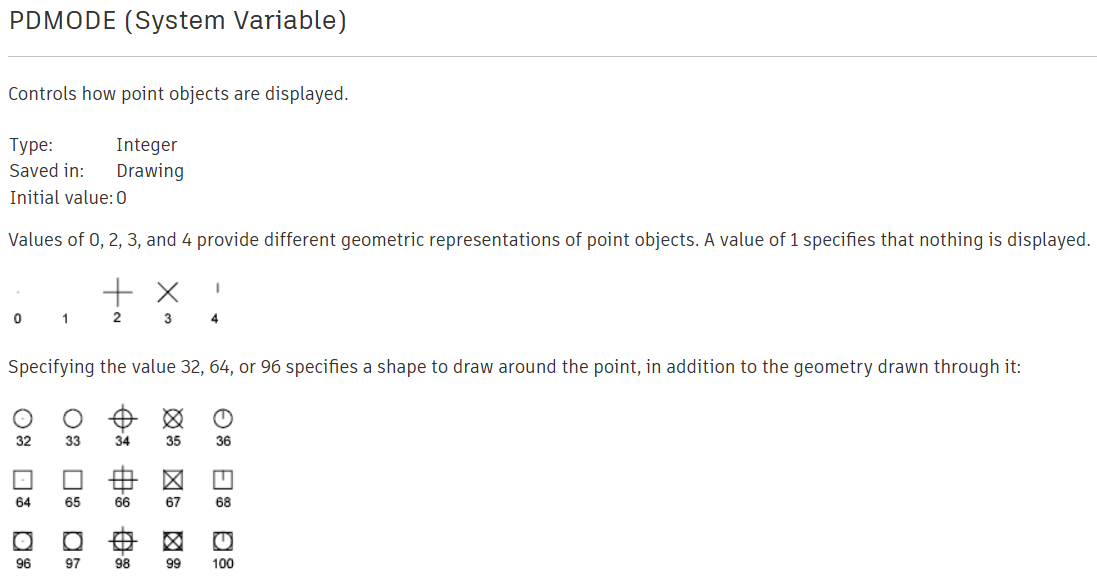

PDMODE controls how point objects are displayed. For more details, please refer to the link provided below.
