When opening a drawing, my lines are suddenly very thick. What happened?

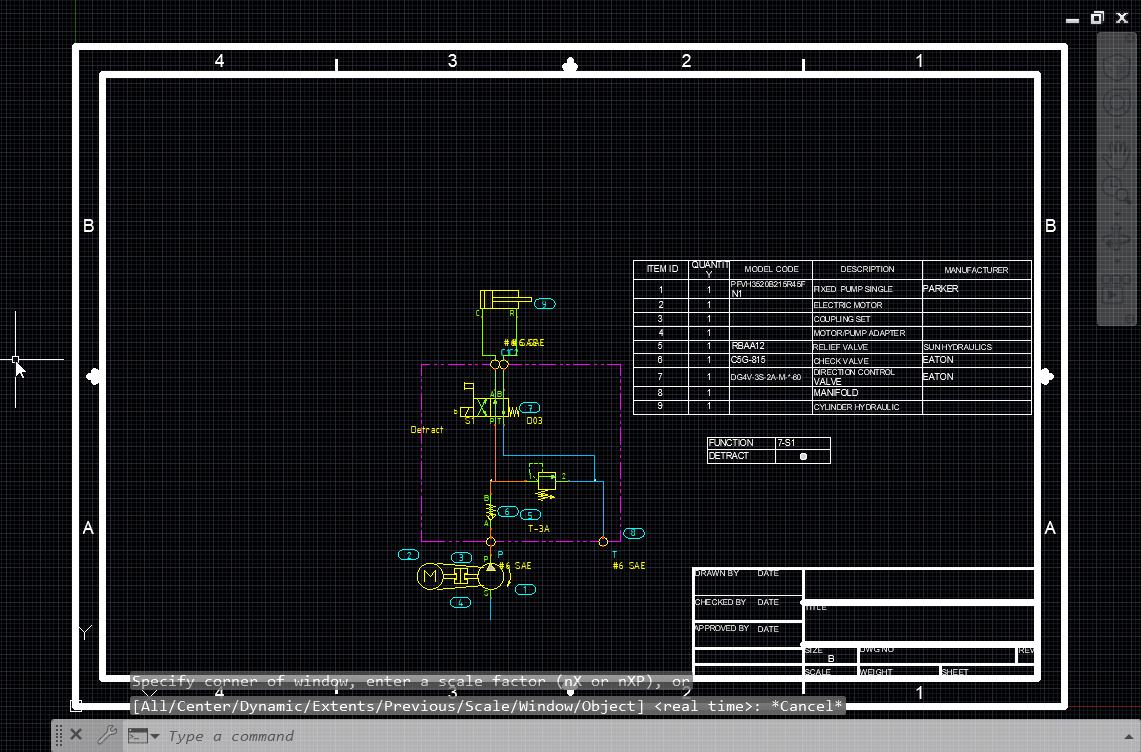

Issue: When opening a drawing, the lines are suddenly very thick.

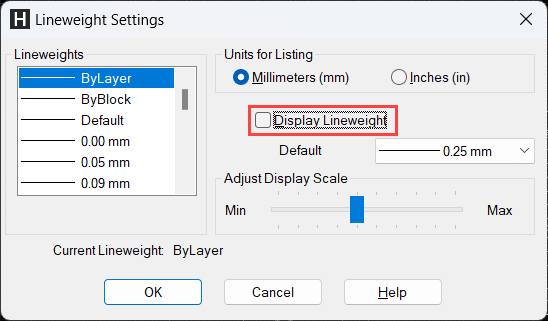

Solution: This is due to the lineweight being displayed. To turn the lines back to normal, type LWEIGHT into the command line and uncheck the 'Display Lineweight' check box

• Related Articles

• How do I display the line weight for connection lines?

   Type “LINEWEIGHT” on the command line. The Line Weight Settings dialog box is displayed.  By default the ‘Display Lineweight’ checkbox is deselected. Select the Display 'Lineweight’ checkbox and click OK. Set the Line Weight value inside HyDraw ...

• How do I configure auto-saves and recover drawing files?

  Set the auto save time as required: Click the HyDraw Icon in the upper left hand corner. Then, click Options at the bottom of the pop-up screen. 3. Click the Open and Save tab. 4. Check the Automatic save box and set the time between saves. 5. Apply ...

• When opening a file, HyDraw CAD continuously loads and never opens the file

  Problem: When opening a file, the blue loading bar appears at the bottom of the HyDraw CAD canvas, simulating that the file is opening: Ultimately, the file never opens and HyDraw CAD needs to be aborted. Solution: This is due to a corrupt entity ...

• Why do dashed lines in symbol appear as continuous lines in the drawing?

  This may happen if the line type scale factor is too high. Change the line type scale to make the lines appear as dashed lines. On the command line type “LTS (LTSCALE)”and press Enter. The command line will display the current line type scale, enter ...

• Lines added to schematic when exporting a drawing to PDF

    Use the DWG to PDF option instead of Export to PDF. Alternately, try the Autodesk fixes. (HyDraw CAD does not control the print options.) Random-rays-and-lines-show-up-in-PDF-printed-from-AutoCAD.html ...
