When running the ATTSYNC command, my display properties disappear

Problem:

Upon running the ATTSYNC command from the command line, the display properties of a symbol disappear.

Solution:

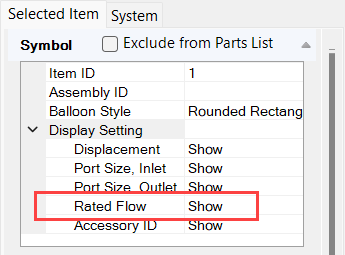

There is currently a limitation in handling the display properties of symbols with the ATTSYNC command. The display property can be set to 'Show' within the HyDraw Property Manager to reinstate the display property:
