Why search results vary in HyDraw CAD?
In HyDraw CAD, search results are displayed differently depending on the number of matching entries. When fewer than 20 matches are found, individual model codes are shown. If the number of matching results exceeds 20, the system automatically groups and displays them by Model Family.
For example: (Search results may vary depending on the specific Library content.)
When you search for RAH101, the system displays individual Model Code results, as the number of matching results is fewer than 20.
When you search for RAH101, the system displays individual Model Code results, as the number of matching results is fewer than 20.
However, when you search for 157B2, the system displays results grouped by Model Family, since the number of matching results exceeds 20.

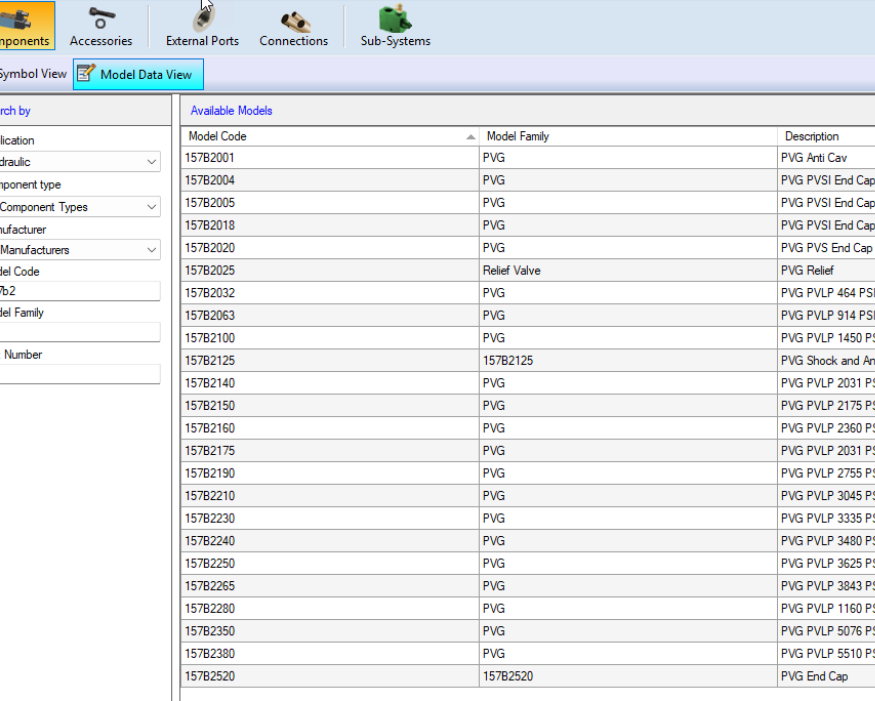

As shown below, the search results in HLM (HyDraw Library Manager) display more than 20 entries for 157B2.
This functionality appears to be a performance and usability optimization to make search results easier to navigate and reduce clutter.
