With Dot/Dash separator in Component Code, Identical Items are not grouped in Parts list.

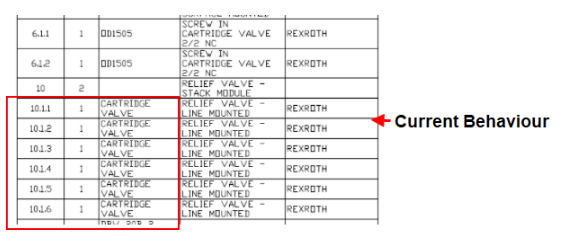

When Dot/Dash separator is used in Component Code in HyDraw Library Manager, the Parts list will not group the Identical items. This is a technical design limitation in HyDraw CAD.

Workaround: Use Semicolon(:) instead of Dash/Dot in Component code for grouping identical items in Parts List.
