Cavity created in MDTools Library Manager is not visible in MDTools

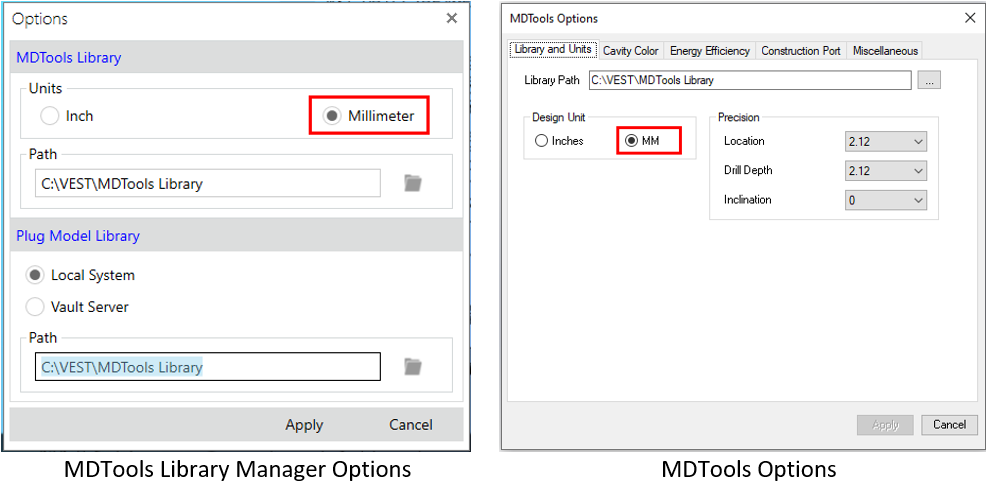

There might be the issue with library settings. User need to make sure that they are using same Library and Units setting in both MLM and MDTools.

Any Cavity created in MLM with mm settings will be available in MDTools with mm settings only. Changing

• Related Articles

• MDTools library manager displays a corrupt query error when trying to edit a cavity/footprint

  This problem was introduced with a Microsoft update- KB4484127. A recent update (KB2986256) by Microsoft for Office 2010 resolves this issue. You can download it from the link below. ...

• Why can't MDTools find the Library?

  "Could not find library database. Please specify correct path." If MDTools cannot find the library, ensure the following: Save the document as a text file in a desired location. Make sure that the MDTools library path is set correctly. -  Go to ...

• How to proceed if the MDTools browser is not visible and I cannot insert cavities from the library?

  This occurs if the MDTools browser gets overlapped by the SOLIDWORKS browser, which results in hiding the MDTools browser. Drag the SOLIDWORKS browser down to show the MDTools browser.

• Unspecified error while inserting cavity.

  If you get an 'Unspecified error' while stating a new part file or inserting a cavity in a newly created block, apply the following. If MDTools cannot find the library, ensure the following: Ensure you have full permissions to 'Users' for folder ...

• What is the difference between Virtual Cavity mode and Feature Cavity mode?

  Virtual Cavity mode: Virtual cavity mode was created to enhance performance as all CAD applications tends to slow down exponentially with the number of features. In Virtual Cavity mode no feature is created, temporary Graphics are used to display ...
