License Overuse after upgrading to HyDraw CAD2026
If you see the following message when you try to run HyDraw CAD, the most likely reason is that you do not have the latest service pack/hotfixes installed for HyDraw CAD.
- Go to link: https://www.vestusa.com/Circuit-Design-with-HyDraw-CAD_Service-Packs.htm
- Navigate to the appropriate section for HyDraw CAD2024 or HyDraw CAD2022.
- Download and install the latest service packs/hotfixes available in chronological order.
- Exit and Reopen HyDraw CAD.
To check if you have the latest service packs/hotfixes already installed then inside HyDraw CAD2024 or HyDraw CAD2022

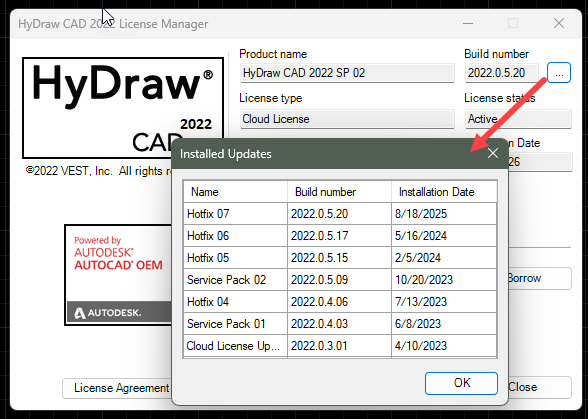

- Go to Help tab > License Information. Below are details for HyDraw CAD2024 installed updates.
- Go to Help tab > License Information. Below are details for HyDraw CAD2022 installed updates.
Note: Even if you are using HyDraw CAD2026 but have HyDraw CAD2024 or HyDraw CAD2022 still installed on the system it is required to install the latest service pack/hotfixes for those versions.
Even after installing the latest service packs/hotfixes available if you still receive the same message then email hydrawsupport@vestusa.com.
